RX77減速機詳細信息
RX77減速機
訂購熱線：13360667204
RX77減速機重量：RX77減速機重量23公斤，RX77減速機與電機重量分別如下：
RX77減速機與1.1KW電機重量43公斤,RX77減速機與1.5KW電機重量46公斤,RX77減速機與2.2KW電機重量55公斤,RX77減速機與3KW電機重量58公斤,RX77減速機與4KW電機重量69公斤,RX77減速機與5.5KW電機重量83公斤,RX77減速機與7.5KW電機重量96公斤,RX77減速機與11KW電機重量138公斤。齒輪減速機
RX77減速機加油量：可加齒輪油
RX77減速機M3安裝加2.6L，RX77減速機M2安裝加1.5L，RX77減速機M1安裝加1.1L，RX77減速機M4安裝加2.7L，RX77減速機M5安裝加1.6L，RX77減速機M6安裝加1.6L。規定的加注量為參老值。精確值的變化與級數和傳動比有關。請你在加注潤滑油時—定要注意油位螺栓所指示的精確油量。后期調整安裝方式時,您必須根據改變后的安裝方式相應調整加注潤滑劑。上述中列出了安裝方式M1-M6的減速器相應的標準參考潤滑油注入量值。電機減速機一體機

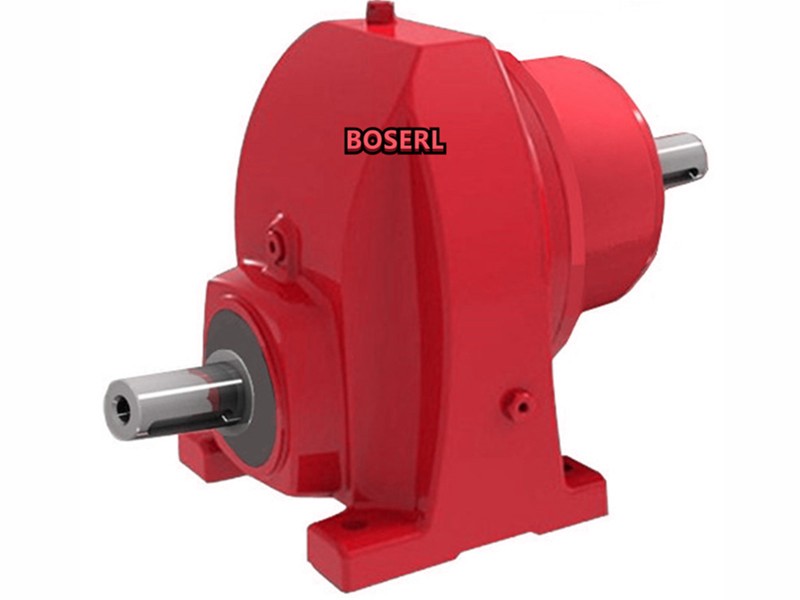

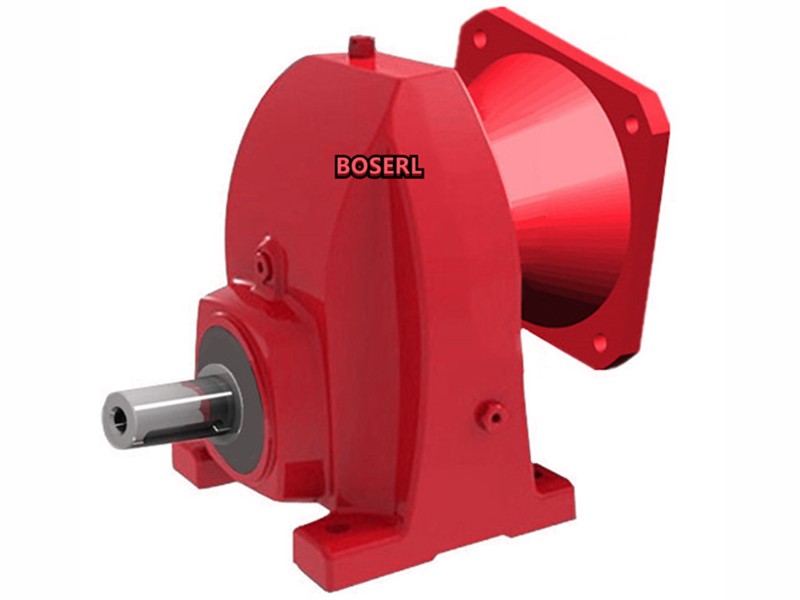

RX77減速機實物圖：圖一為RX77減速機不同心臥式底腳安裝，圖二為R77底腳安裝斜齒輪減速機，圖三為RF77法蘭立式安裝斜齒輪減速機，圖四為RXF77減速機不同心立式法蘭安裝。
RX77減速機型號表示方法：
RX77減速機型號結構RX77-B5.5KW-4P-減速比-安裝方式-接線盒位置。同軸減速機
RX77減速機性能參數表結構說明：Nm代表輸出扭矩，1/min代表輸出轉數，KW代表電機功率，i代表減速比，N代表徑向負荷，K代表服務系數，F(xiàn)rame size代表基座規格，Input Configuration代表輸入帶置。
RX77減速機電機接線盒方位說明：本頁附件選型目錄視圖為M1安裝，方向為:從電機尾部的風罩向前看。可提供R(0°)、B(90°）、L(180° )、T（270°)四種電機接線盒方位。其中R(0°)位置是默認方位,如無特別說明，將按默認方位提供。可提供S和N兩種進線方位,其中S位置將按默認方位。如無特別說明，將按默認方位R(0°)提供。
RX77減速機參數：
RX77減速機輸出轉速175rpm,187rpm,218rpm,249rpm,262rpm,296rpm,347rpm,378rpm,431rpm,455rpm,519rpm,576rpm,657rpm,745rpm,838rpm,986rpm。（以上轉數均為四級電機算出的，可用兩級電機，六級電機計算，也可以用變頻電機調速）
RX77減速機電機可帶伺服、剎車、變頻、防爆、交流、直流、三相、單相電機RX77與1.1KW,RX77與1.5KW,RX77與2.2KW,RX77與3KW,RX77與4KW,RX77與5.5KW,RX77與7.5KW,RX77與11KW。
RX77減速機減速比1:1.42,1:1.67,1:1.88,1:2.13,1:2.43,1:2.7,1:3.08,1:3.25,1:3.7,1:4.04,1:4.73,1:5.35,1:5.63,1:6.41,1:7.47,1:8。
RX77減速機負載扭矩53Nm,57Nm,103Nm,110Nm,123Nm,143Nm,153Nm,155Nm,173Nm,182Nm,187Nm,193Nm,200Nm,215Nm。（以上扭矩均為四級電機得出扭矩，需要比上面更大的扭矩，可把電機功率加大，減速機型號加大使用）

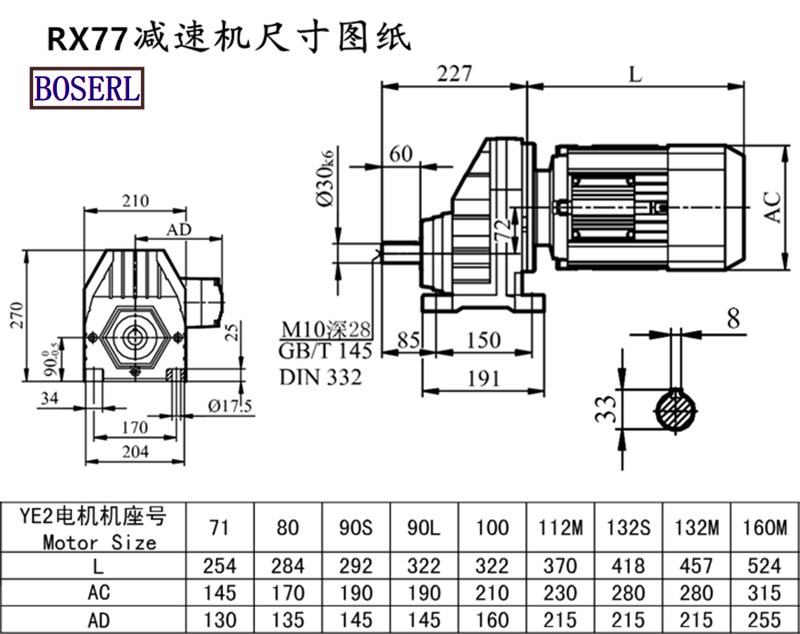

RX77減速機安裝尺寸：高270*寬204*長227（帶輸出軸）
RX77減速機型號：RX77AQA80,RX77AQA100,RX77AQA115,RX77AQA140,RX77AQA160,RX77AQA190,RX77AQH80,RX77AQH100,RX77AQH115,RX77AQH140,RX77AQH160,RX77AQH190,JRTRX77-Y0.18KW,JRTRX77-Y0.25KW,JRTRX77-Y0.37KW,JRTRX77-Y0.55KW,JRTRX77-Y0.75KW,JRTRX77-Y1.1KW,JRTRX77-Y1.5KW,JRTRX77-Y100M4,JRTRX77-Y112M4,JRTRX77-Y11KW,JRTRX77-Y132M4,JRTRX77-Y15KW,JRTRX77-Y160M4,JRTRX77-Y2.2KW,JRTRX77-Y3KW,JRTRX77-Y4KW,JRTRX77-Y5.5KW,JRTRX77-Y7.5KW,JRTRX77-Y71M4,JRTRX77-Y80M4,JRTRX77-Y90M4,JRTRX77-YEJ100M4,JRTRX77-YEJ112M4,JRTRX77-YEJ132M4,JRTRX77-YEJ160M4,JRTRX77-YEJ71M4,JRTRX77-YEJ80M4,JRTRX77-YEJ90M4,JRTRX77-YS100M4,JRTRX77-YS112M4,JRTRX77-YS132M4,JRTRX77-YS160M4,JRTRX77-YS71M4,JRTRX77-YS80M4,JRTRX77-YS90M4,JRTRX77-YVP100M4,JRTRX77-YVP112M4,JRTRX77-YVP132M4,JRTRX77-YVP160M4,JRTRX77-YVP71M4,JRTRX77-YVP80M4,JRTRX77-YVP90M4,JRTRX77-YVPEJ100M4,JRTRX77-YVPEJ112M4,JRTRX77-YVPEJ132M4,JRTRX77-YVPEJ160M4,JRTRX77-YVPEJ71M4,JRTRX77-YVPEJ80M4,JRTRX77-YVPEJ90M4,EWRX77-Y0.18KW,EWRX77-Y0.25KW,EWRX77-Y0.37KW,EWRX77-Y0.55KW,EWRX77-Y0.75KW,EWRX77-Y1.1KW,EWRX77-Y1.5KW,EWRX77-Y100M4,EWRX77-Y112M4,EWRX77-Y11KW,EWRX77-Y132M4,EWRX77-Y15KW,EWRX77-Y160M4,EWRX77-Y2.2KW,EWRX77-Y3KW,EWRX77-Y4KW,EWRX77-Y5.5KW,EWRX77-Y7.5KW,EWRX77-Y71M4,EWRX77-Y80M4,EWRX77-Y90M4,EWRX77-YEJ100M4,EWRX77-YEJ112M4,EWRX77-YEJ132M4,EWRX77-YEJ160M4,EWRX77-YEJ71M4,EWRX77-YEJ80M4,EWRX77-YEJ90M4,EWRX77-YS100M4,EWRX77-YS112M4,EWRX77-YS132M4,EWRX77-YS160M4,EWRX77-YS71M4,EWRX77-YS80M4,EWRX77-YS90M4,EWRX77-YVP100M4,EWRX77-YVP112M4,EWRX77-YVP132M4,EWRX77-YVP160M4,EWRX77-YVP71M4,EWRX77-YVP80M4,EWRX77-YVP90M4,EWRX77-YVPEJ100M4,EWRX77-YVPEJ112M4,EWRX77-YVPEJ132M4,EWRX77-YVPEJ160M4,EWRX77-YVPEJ71M4,EWRX77-YVPEJ80M4,EWRX77-YVPEJ90M4,SLRX77-Y0.18KW,SLRX77-Y0.25KW,SLRX77-Y0.37KW,SLRX77-Y0.55KW,SLRX77-Y0.75KW,SLRX77-Y1.1KW,SLRX77-Y1.5KW,SLRX77-Y100M4,SLRX77-Y112M4,SLRX77-Y11KW,SLRX77-Y132M4,SLRX77-Y15KW,SLRX77-Y160M4,SLRX77-Y2.2KW,SLRX77-Y3KW,SLRX77-Y4KW,SLRX77-Y5.5KW,SLRX77-Y7.5KW,SLRX77-Y71M4,SLRX77-Y80M4,SLRX77-Y90M4,SLRX77-YEJ100M4,SLRX77-YEJ112M4,SLRX77-YEJ132M4,SLRX77-YEJ160M4,SLRX77-YEJ71M4,SLRX77-YEJ80M4,SLRX77-YEJ90M4,SLRX77-YS100M4,SLRX77-YS112M4,SLRX77-YS132M4,SLRX77-YS160M4,SLRX77-YS71M4,SLRX77-YS80M4,SLRX77-YS90M4,SLRX77-YVP100M4,SLRX77-YVP112M4,SLRX77-YVP132M4,SLRX77-YVP160M4,SLRX77-YVP71M4,SLRX77-YVP80M4,SLRX77-YVP90M4,SLRX77-YVPEJ100M4,SLRX77-YVPEJ112M4,SLRX77-YVPEJ132M4,SLRX77-YVPEJ160M4,SLRX77-YVPEJ71M4,SLRX77-YVPEJ80M4,SLRX77-YVPEJ90M4,DSZRX77-Y0.18KW,DSZRX77-Y0.25KW,DSZRX77-Y0.37KW,DSZRX77-Y0.55KW,DSZRX77-Y0.75KW,DSZRX77-Y1.1KW,DSZRX77-Y1.5KW,DSZRX77-Y100M4,DSZRX77-Y112M4,DSZRX77-Y11KW,DSZRX77-Y132M4,DSZRX77-Y15KW,DSZRX77-Y160M4,DSZRX77-Y2.2KW,DSZRX77-Y3KW,DSZRX77-Y4KW,DSZRX77-Y5.5KW,DSZRX77-Y7.5KW,DSZRX77-Y71M4,DSZRX77-Y80M4,DSZRX77-Y90M4,DSZRX77-YEJ100M4,DSZRX77-YEJ112M4,DSZRX77-YEJ132M4,DSZRX77-YEJ160M4,DSZRX77-YEJ71M4,DSZRX77-YEJ80M4,DSZRX77-YEJ90M4,DSZRX77-YS100M4,DSZRX77-YS112M4,DSZRX77-YS132M4,DSZRX77-YS160M4,DSZRX77-YS71M4,DSZRX77-YS80M4,DSZRX77-YS90M4,DSZRX77-YVP100M4,DSZRX77-YVP112M4,DSZRX77-YVP132M4,DSZRX77-YVP160M4,DSZRX77-YVP71M4,DSZRX77-YVP80M4,DSZRX77-YVP90M4,DSZRX77-YVPEJ100M4,DSZRX77-YVPEJ112M4,DSZRX77-YVPEJ132M4,DSZRX77-YVPEJ160M4,DSZRX77-YVPEJ71M4,DSZRX77-YVPEJ80M4,DSZRX77-YVPEJ90M4,BRX77-Y0.18KW,BRX77-Y0.25KW,BRX77-Y0.37KW,BRX77-Y0.55KW,BRX77-Y0.75KW,BRX77-Y1.1KW,BRX77-Y1.5KW,BRX77-Y100M4,BRX77-Y112M4,BRX77-Y11KW,BRX77-Y132M4,BRX77-Y15KW,BRX77-Y160M4,BRX77-Y2.2KW,BRX77-Y3KW,BRX77-Y4KW,BRX77-Y5.5KW,BRX77-Y7.5KW,BRX77-Y71M4,BRX77-Y80M4,BRX77-Y90M4,BRX77-YEJ100M4,BRX77-YEJ112M4,BRX77-YEJ132M4,BRX77-YEJ160M4,BRX77-YEJ71M4,BRX77-YEJ80M4,BRX77-YEJ90M4,BRX77-YS100M4,BRX77-YS112M4,BRX77-YS132M4,BRX77-YS160M4,BRX77-YS71M4,BRX77-YS80M4,BRX77-YS90M4,BRX77-YVP100M4,BRX77-YVP112M4,BRX77-YVP132M4,BRX77-YVP160M4,BRX77-YVP71M4,BRX77-YVP80M4,BRX77-YVP90M4,BRX77-YVPEJ100M4,BRX77-YVPEJ112M4,BRX77-YVPEJ132M4,BRX77-YVPEJ160M4,BRX77-YVPEJ71M4,BRX77-YVPEJ80M4,BRX77-YVPEJ90M4,GRX77-Y0.18KW,GRX77-Y0.25KW,GRX77-Y0.37KW,GRX77-Y0.55KW,GRX77-Y0.75KW,GRX77-Y1.1KW,GRX77-Y1.5KW,GRX77-Y100M4,GRX77-Y112M4,GRX77-Y11KW,GRX77-Y132M4,GRX77-Y15KW,GRX77-Y160M4,GRX77-Y2.2KW,GRX77-Y3KW,GRX77-Y4KW,GRX77-Y5.5KW,GRX77-Y7.5KW,GRX77-Y71M4,GRX77-Y80M4,GRX77-Y90M4,GRX77-YEJ100M4,GRX77-YEJ112M4,GRX77-YEJ132M4,GRX77-YEJ160M4,GRX77-YEJ71M4,GRX77-YEJ80M4,GRX77-YEJ90M4,GRX77-YS100M4,GRX77-YS112M4,GRX77-YS132M4,GRX77-YS160M4,GRX77-YS71M4,GRX77-YS80M4,GRX77-YS90M4,GRX77-YVP100M4,GRX77-YVP112M4,GRX77-YVP132M4,GRX77-YVP160M4,GRX77-YVP71M4,GRX77-YVP80M4,GRX77-YVP90M4,GRX77-YVPEJ100M4,GRX77-YVPEJ112M4,GRX77-YVPEJ132M4,GRX77-YVPEJ160M4,GRX77-YVPEJ71M4,GRX77-YVPEJ80M4,GRX77-YVPEJ90M4,RCX77-Y0.18KW,RCX77-Y0.25KW,RCX77-Y0.37KW,RCX77-Y0.55KW,RCX77-Y0.75KW,RCX77-Y1.1KW,RCX77-Y1.5KW,RCX77-Y100M4,RCX77-Y112M4,RCX77-Y11KW,RCX77-Y132M4,RCX77-Y15KW,RCX77-Y160M4,RCX77-Y2.2KW,RCX77-Y3KW,RCX77-Y4KW,RCX77-Y5.5KW,RCX77-Y7.5KW,RCX77-Y71M4,RCX77-Y80M4,RCX77-Y90M4,RCX77-YEJ100M4,RCX77-YEJ112M4,RCX77-YEJ132M4,RCX77-YEJ160M4,RCX77-YEJ71M4,RCX77-YEJ80M4,RCX77-YEJ90M4,RCX77-YS100M4,RCX77-YS112M4,RCX77-YS132M4,RCX77-YS160M4,RCX77-YS71M4,RCX77-YS80M4,RCX77-YS90M4,RCX77-YVP100M4,RCX77-YVP112M4,RCX77-YVP132M4,RCX77-YVP160M4,RCX77-YVP71M4,RCX77-YVP80M4,RCX77-YVP90M4,RCX77-YVPEJ100M4,RCX77-YVPEJ112M4,RCX77-YVPEJ132M4,RCX77-YVPEJ160M4,RCX77-YVPEJ71M4,RCX77-YVPEJ80M4,RCX77-YVPEJ90M4,MTDX77-Y0.18KW,MTDX77-Y0.25KW,MTDX77-Y0.37KW,MTDX77-Y0.55KW,MTDX77-Y0.75KW,MTDX77-Y1.1KW,MTDX77-Y1.5KW,MTDX77-Y100M4,MTDX77-Y112M4,MTDX77-Y11KW,MTDX77-Y132M4,MTDX77-Y15KW,MTDX77-Y160M4,MTDX77-Y2.2KW,MTDX77-Y3KW,MTDX77-Y4KW,MTDX77-Y5.5KW,MTDX77-Y7.5KW,MTDX77-Y71M4,MTDX77-Y80M4,MTDX77-Y90M4,MTDX77-YEJ100M4,MTDX77-YEJ112M4,MTDX77-YEJ132M4,MTDX77-YEJ160M4,MTDX77-YEJ71M4,MTDX77-YEJ80M4,MTDX77-YEJ90M4,MTDX77-YS100M4,MTDX77-YS112M4,MTDX77-YS132M4,MTDX77-YS160M4,MTDX77-YS71M4,MTDX77-YS80M4,MTDX77-YS90M4,MTDX77-YVP100M4,MTDX77-YVP112M4,MTDX77-YVP132M4,MTDX77-YVP160M4,MTDX77-YVP71M4,MTDX77-YVP80M4,MTDX77-YVP90M4,MTDX77-YVPEJ100M4,MTDX77-YVPEJ112M4,MTDX77-YVPEJ132M4,MTDX77-YVPEJ160M4,MTDX77-YVPEJ71M4,MTDX77-YVPEJ80M4,MTDX77-YVPEJ90M4,WXRX77-WSS0.18KW,WXRX77-WSS0.25KW,WXRX77-WSS0.37KW,WXRX77-WSS0.55KW,WXRX77-WSS0.75KW,WXRX77-WSS1.1KW,WXRX77-WSS1.5KW,WXRX77-WSS100M4,WXRX77-WSS112M4,WXRX77-WSS11KW,WXRX77-WSS132M4,WXRX77-WSS15KW,WXRX77-WSS160M4,WXRX77-WSS2.2KW,WXRX77-WSS3KW,WXRX77-WSS4KW,WXRX77-WSS5.5KW,WXRX77-WSS7.5KW,WXRX77-WSS71M4,WXRX77-WSS80M4,WXRX77-WSS90M4,WXRX77-WSSB100M4,WXRX77-WSSB112M4,WXRX77-WSSB132M4,WXRX77-WSSB160M4,WXRX77-WSSB71M4,WXRX77-WSSB80M4,WXRX77-WSSB90M4,WXRX77-WSSVP100M4,WXRX77-WSSVP112M4,WXRX77-WSSVP132M4,WXRX77-WSSVP160M4,WXRX77-WSSVP71M4,WXRX77-WSSVP80M4,WXRX77-WSSVP90M4,WXRX77-WSSVP100M4,WXRX77-WSSVP112M4,WXRX77-WSSVP132M4,WXRX77-WSSVP160M4,WXRX77-WSSVP71M4,WXRX77-WSSVP80M4,WXRX77-WSSVP90M4,WXRX77-WSSVPB100M4,WXRX77-WSSVPB112M4,WXRX77-WSSVPB132M4,WXRX77-WSSVPB160M4,WXRX77-WSSVPB71M4,WXRX77-WSSVPB80M4,WXRX77-WSSVPB90M4。
RX77減速機生產廠家展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.403pzi.cn/product/list-rxxiliejiansuji-cn.html
推薦類似型號：R77減速機
關鍵詞:電機加減速機一體化_RX系列減速器_減速器電機一體化_減速機馬達一體化_RX系列減速機_RX型減速機_電機減速機一體化_GRX系列減速機_減速機電機一體化
RX系列斜齒輪減速機型號：RX57減速機,RX67減速機,RX77減速機,RX87減速機,RX97減速機,RX107減速機
RX系列齒輪減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-45KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
